OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250 x 230 x 231mm

IMM Tonnage : 60T

Mold Weight : 80KG

Tool life : 500k shots

Standard : LKM

Surface finish : VDI 24#

Steel of cavity : Harden with 1*8/S136

Steel of core : Harden with 1*8/S136

Contact Now

Seal bracket (1*8)

No.22678

Mold information:
[Size]: (L) 250 x (W) 230 x (H) 231mm
[Gate]: side gate
[Mold weight]: 80 kg
[Tool life]: 500k shots

OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678

Mold details:

This is a two-plates mold with high-quality LKM mold (fast filling, low pressure and good feeding capacity, suitable for PC with high viscosity and low fluidity, minimized pressure loss) to meet the production requirements of PC parts; part size: 9.40*10.30*0.97mm, part weight: 0.3g with minimized error and precise molding; the mold fits 60T machine

Surface finish
VDI 24#

OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678

Steel of cavity Harden with 1*8/S136
Steel of core

Injection type Cold runner
Runner type

OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678

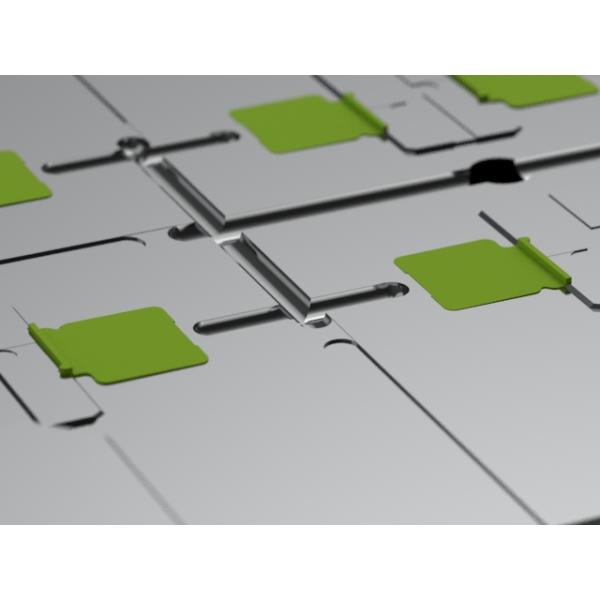

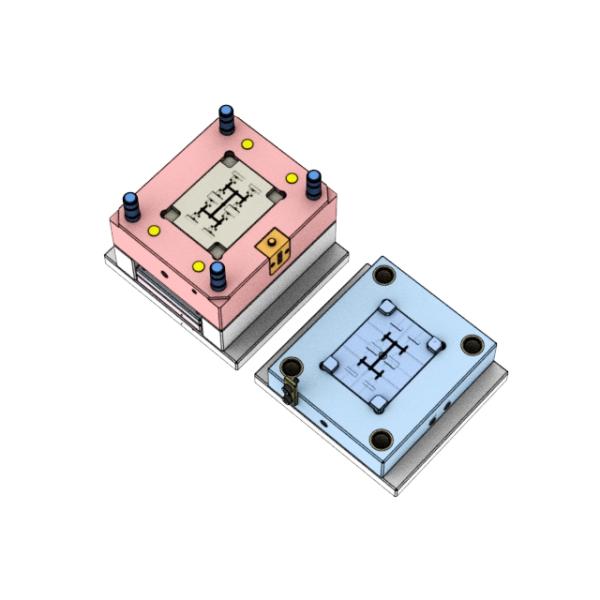

Display diagram

OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678


Wholesale OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678 from china suppliers

OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678 Images
