OEM / ODM : Custom Consumer Electronics Molds / Transparent antenna holder (1*2) No.22677-B

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300 X 300 X 316（mm）

IMM Tonnage : 90T

Mold Weight : 172.76kg

Tool life : 500k shots

Standard : LKM

Type : Three-plates mold

Injection type : Cold runner

Runner type : Cold runner

Mold type : Custom Consumer Electronics Molds

Structure : Fixed Cavity + Movable Side + Runner Stripper Plate + runner plate

Sales channels : mold exporter

Formation method : injection moulding

Contact Now

Transparent antenna holder (1*2)

No.22677-B

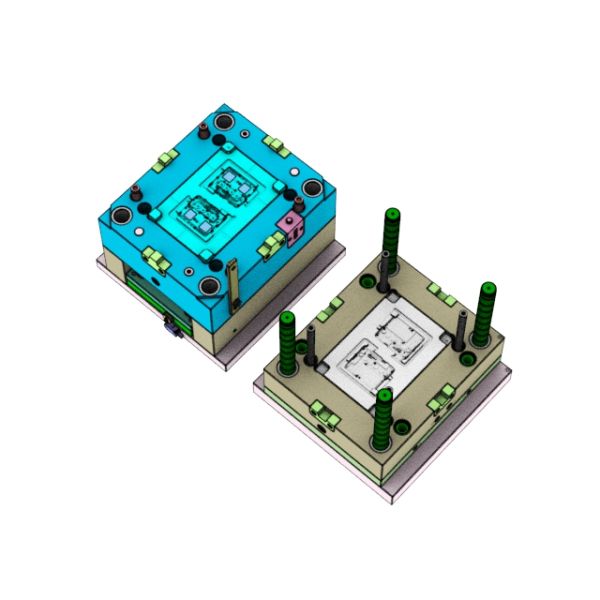

Mold details
Size (mm) (L) 300*(W) 300*(H) 316
Net weight (kg) 172.76
Steel of cavity

Harden with 1*2/S136 to have higher production performance,

anti-wearing and anti-strain performance, reduce maintenance

cost and prolong the tool life
Steel of core
Gate Pin point gate

This is a three-plates mold with cold runner, self-degating; mold surface EDM with VDI 24#,

semi-gloss finish, w/o machining marks; the molded parts have aesthetic appearance and

high glossiness; the molded parts have aesthetic appearance and high glossiness

OEM / ODM : Custom Consumer Electronics Molds / Transparent antenna holder (1*2) No.22677-B

Part details

The part material is PC; the part size is 67.15*55.27*3.65mm and the part weight is 4.5g;

with precise details and precise fitting

OEM / ODM : Custom Consumer Electronics Molds / Transparent antenna holder (1*2) No.22677-B

The mold fits 90T machine, and tool life ≥ 500k shots; with scientific internal structure,

short cycle time and minimized cold slug

OEM / ODM : Custom Consumer Electronics Molds / Transparent antenna holder (1*2) No.22677-B

Display diagram
