Battery cover (1*1) / Three-plates mold / Cold runner No.21776

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400 X 400 X 386

IMM Tonnage : 110T

Mold Weight : 350kg

Mold base P/N : FCI3040.70110100

Features : 17 lifters

Gate : Sub gate

Type : Three-plates mold

Steel of cavity and core : Harden (1*1/S136)

Standard : LKM

Contact Now

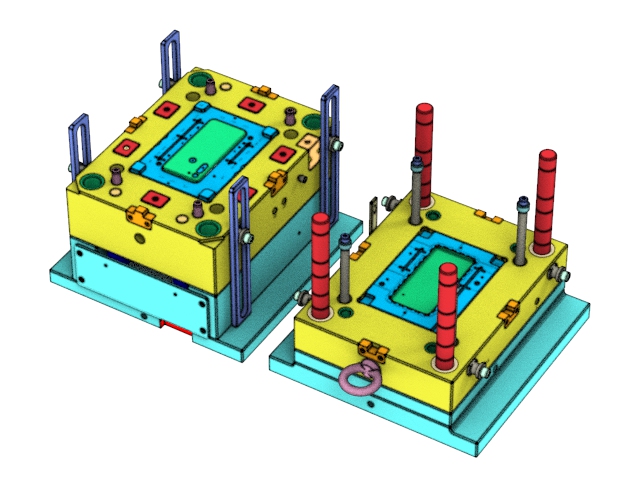

Battery cover (1*1)

No.21776

Mold base Standard

The mold is designed with standard mold base FCI3040.70110100,

the mold size is 400 X 400 X 386,

LKM standard, net weight: 350 kg, with 17 lifters, scientific and durable; tool life > 500k shots;

scientific cold runner design, minimize cold slug, better meet production needs; low cost, aesthetic,

smooth surface w/o burrs; fit 110T machine.

Battery cover (1*1) / Three-plates mold / Cold runner No.21776Battery cover (1*1) / Three-plates mold / Cold runner No.21776Battery cover (1*1) / Three-plates mold / Cold runner No.21776

Gate Sub gate
Type Three-plates mold
Surface finish

1. Green surface polished to 800# sandpaper
2. Secondary surface (core) EDM with VDI27#; surface of antenna

area EDM with VDI18#

Steel of cavity

and core

 Harden (1*1/S136)
Standard LKM

Battery cover (1*1) / Three-plates mold / Cold runner No.21776

The net weight of part is 15g, and the part size is 161.27X75.80X7.30mm.

Display diagram

Battery cover (1*1) / Three-plates mold / Cold runner No.21776Battery cover (1*1) / Three-plates mold / Cold runner No.21776Battery cover (1*1) / Three-plates mold / Cold runner No.21776Battery cover (1*1) / Three-plates mold / Cold runner No.21776
