Name: Middle frame 11 Cold runner Threeplates mold No22676
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 400 X 450 X 446

IMM Tonnage : 140T

Mold Weight : 524.12kg

Design software : 3D:UG 4.0/2D:CAD

Mould material : Harden（1*4/S136）

Mould base : LKM

Runner : Cold runner

Mould life : ≥500000 shots

Contact Now

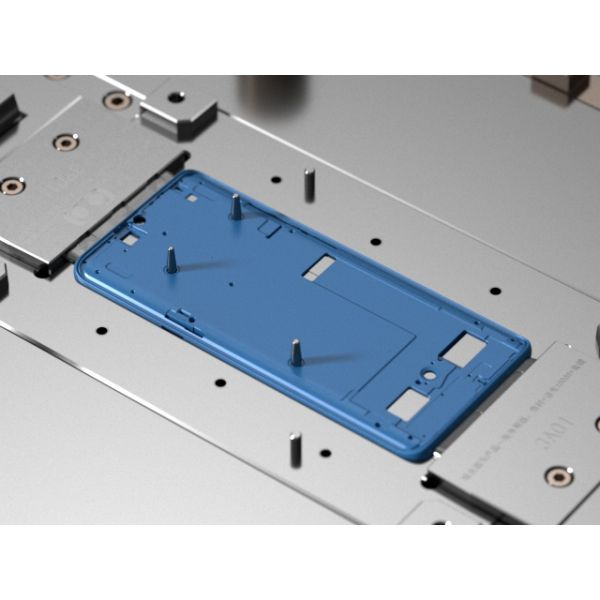

Middle frame (1*1)

No.22676

Middle frame (1*1)/ Cold runner / Three-plates mold No.22676

Mold weight	524.12kg	IMM tonnage	140T
Part weight	5.6g

Each cavity has 2 core slides, 1 in-core slide, 8 lifters; the part material is PC+10%GF; mold

surface polished; harden the cavity and core with 1*1/S136 to improve anti-wearing and

anti-corrosion performance; three-plates mold with smooth part surface, self-degating and

minimized gate marks

Middle frame (1*1)/ Cold runner / Three-plates mold No.22676

Display diagram
