Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062-B

Name: Medical Instrument PN1500 14 Twoplates mold Cold runner No21062B
Brand: Chitwing
Price: 1 USD

Wholesale Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062-B from china suppliers

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 251.000

IMM Tonnage : 100T

Mold Weight : 94kg

Design software : 3D:UG 4.0, 2D:CAD

Mould life : 500000 shots

Runner : Cold runner

Standard : LKM

Part material : POM

Type : Two-plates mold

Standard mold base P/N : CI2025.507070

Contact Now

Medical Instrument PN-1500 (1*4)

No.21062

Standard mold base:CI2025.507070

Standard:LKM

The mold has dimensions of (L)250 x (W)250 x (H)251mm and is a two-plates design with

side gate and cold runner system, allowing for easy processing and degating, making it

suitable for mass production. The mold surface is polished to SPI B-2, improving smoothness,

hardness, corrosion resistance, and wear resistance, with a tool life of up to 500k shots.

The cavity and core are hardened using 1*4/S136, providing high hardness, corrosion

resistance, and wear resistance, enabling continuous production of stable quality parts with

short cycle times and precise details, free of flow marks and gas marks.

Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062-B

Part material

The part size is 3.86 X 7.78 X 3.25 mm

and the part weight is only 0.03g

POM

Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062-B

☆ Mold net weight: 94 kg

☆ IMM tonnage: 100T

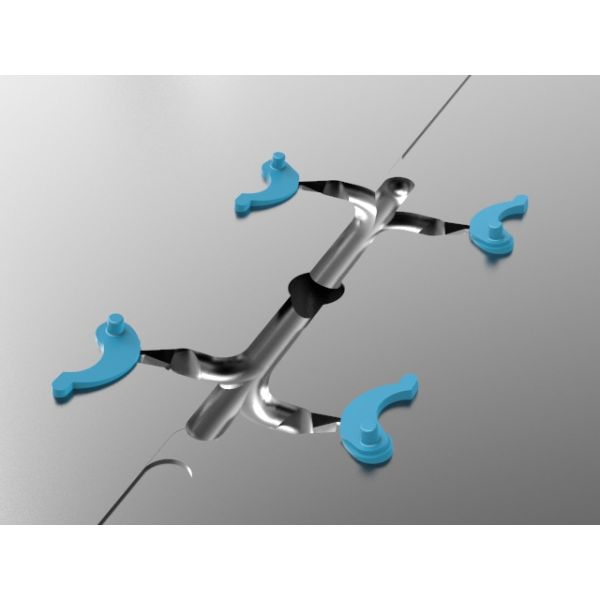

Display diagram
