OEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-B

Brand Name : Chitwing

Model Number : Earphone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 270.000 X 490.000 X 406.000

IMM Tonnage : 180T

Mold Weight : 900kg

Standard : LKM

Tool life : 500K shots

Type : Three plates mold

Gate : Pin point gate

Part material : PC/PC+ABS

Part weight : 1.6g

Contact Now

Transparent Headphone Lower Housing (1*2) / Hot runner / Three-plates mold No.23306 &23307-B

Transparent Headphone
Lower Housing (1*2)
No.23306 & 23307-B

The mold, with the part number DAI2740 808090, is a three-plates mold designed according to the LKM standard. It has a size of 270mm in length, 490mm in width, and 406mm in height. The mold features 4 slides and 10 lifters, and it utilizes a pin point gate for the injection process. With a tool life of 500K shots, it is suitable for hot runner injection/runner type. The mold weighs 900kg and is compatible with a 180T machine.


OEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-B

The double-shot molding technique is employed in this mold, allowing for the injection of two different materials into the same mold set. This results in the formation of molded parts composed of two materials.


OEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-B

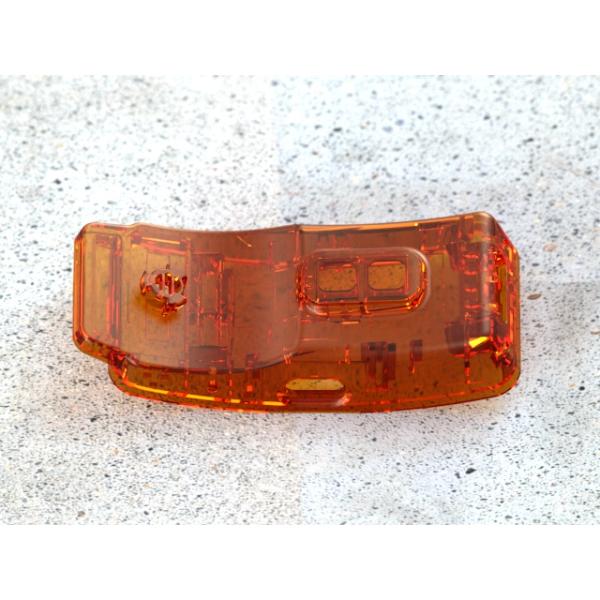

The part material used in this mold is PC/PC+ABS, which offers a low price, a hard texture, and resistance to wear. The part has dimensions of 55.01mm x 21.4mm x 11.5mm and weighs 1.6g per piece.


OEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-B

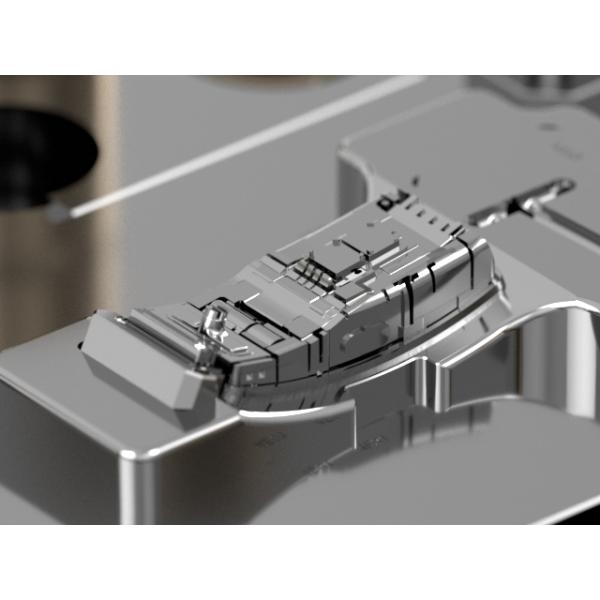

To achieve a high-quality surface finish, the mold has a cavity and core made of hardened steel (1*2/S136). The surface is polished to SPI-B1 standard.



OEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-B




Display diagram

OEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-BOEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-BOEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-BOEM / ODM ： Double Injection Molding & Transparent Headphone Lower Housing 1*2 No:23306 & 23307-B
