OEM / ODM ： Double Injection Molding & Router Keys (1*4) No.23894 & 23895

Name: OEM ODM Double Injection Molding amp Router Keys 14 No23894 amp 23895
Brand: Chitwing
Price: 1 USD

Wholesale OEM / ODM ： Double Injection Molding & Router Keys (1*4) No.23894 & 23895 from china suppliers

Brand Name : Chitwing

Model Number : Smart Doorbell

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Service life : Up to 500K shots/life time

Product material : PC/TPU

Feature : Two-slide

Standard : LKM

Size : L 230 x W 440 x H 316

IMM Tonnage : 140T

Net weight : 530kg

Contact Now

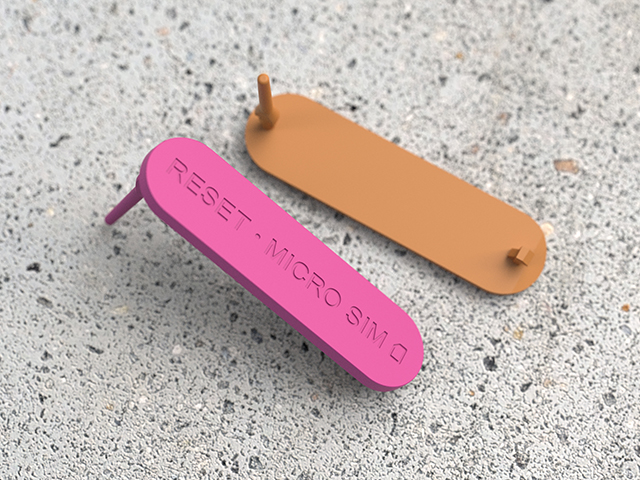

Router Keys (1*4)

No.23894 & 23895

☆ Mold base P/N - FCI2335 709080	☆ Size - L 230 x W 440 x H 316 mm

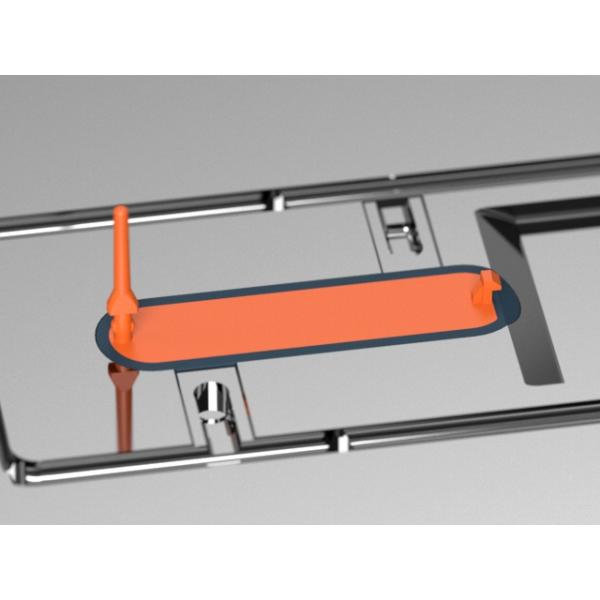

☆ Gate - Overlap gate + pin point gate	☆ Tool life - 500k shots
☆ Net weight - 530kg	☆ IMM Tonnage - 140T

OEM / ODM ： Double Injection Molding & Router Keys (1*4) No.23894 & 23895

☆ Type - Three-plates mold	☆ Part material - PC/TPU
☆ Part weight - 0.36g	☆ Part overall size - 7.90 X 29.85 X 1.60mm

OEM / ODM ： Double Injection Molding & Router Keys (1*4) No.23894 & 23895

☆ Surface finish

- ⑴ A surface etch with VDI3400-27#
- ⑵ TPU surface EDM with Makino VDI3400-18#

☆ [Standard] - LKM (Chinese general injection mold standard)
☆ [Steel of cavity & core] - Harden (1*4/S136)
(use harden steel for cavity and core, with good hardness and preformation of

anti-wearing/ anti-corrosion)

OEM / ODM ： Double Injection Molding & Router Keys (1*4) No.23894 & 23895

☆ Injection type - Cold runner
☆ Runner type - Cold runner
☆ Features - Two-slides

OEM / ODM ： Double Injection Molding & Router Keys (1*4) No.23894 & 23895

Display diagram
